Intro:
This mount is named after the Greek goddess of the night, Nyx. It is a new model utilizing strain wave technology. This mount type allows a larger capacity than similar equatorial mounts without needing a counterweight. Even larger capacities are possible with optional counterweights. Another advantage of strain wave (or harmonic) mounts is that there is little or no backlash as compared to other mounts. Backlash is usually in the declination axis and basically is the lag between changing from north to south corrections or vice versa. It is a natural result of typical gear mechanisms.
Mount Type:
- Dual Mode: Switchable between equatorial (EQ) and altazimuth (ALT-AZ) configurations. EQ mode is ideal for astrophotography due to its ability to track the stars as they move across the sky, while ALT-AZ mode is simpler for visual observation.
Payload Capacity:
- High weight capacity: Handles payloads up to 20 kg (44 lbs) without counterweights and 30 kg (66 lbs) with counterweights, making it suitable for even the heaviest amateur telescope and camera setup.
Gear Technology:
- Strain Wave Gears: Employs high-precision strain wave gears on both axes (RA and DEC) for smooth, backlash-free operation. This translates to precise pointing and accurate tracking, crucial for astrophotography.
Portability:
- Lightweight: The unit weighs only 6.4 kg (14 lbs) for excellent portability
Other Features:
- Wireless and USB Control: Allows for convenient control of the mount through Wi-Fi or USB connection.
- Compatible with ASCOM, INDI, Meade LX200 protocols
- Compatible with iOS and Android platforms
- Compatible with ST-4 autoguiding

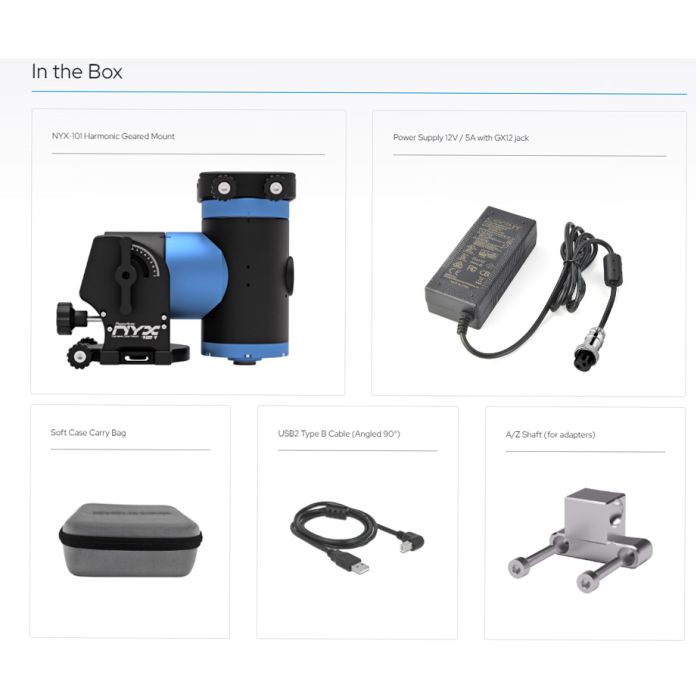

- Power Options: Operates on a standard 12V power supply (included), making it easy to use with portable batteries.
- Safety Features: Includes a power-off brake on the RA axis to prevent accidental movement and safety limit stops during slewing.
- Saddle Plate: Features a universal saddle plate compatible with both Vixen and Losmandy style dovetails, accommodating a wide range of telescopes.
- Built in barometric sensor for atmospheric corrections
Overall, the Pegasus Astro NYX-101 is a well-rounded mount for astronomy enthusiasts seeking a portable and versatile option. Its dual-mode operation, high payload capacity, and precise gear technology make it suitable for both visual observing and astrophotography.
Here are some additional factors to consider:
- Experience Level: Moderately experienced
- Budget: The NYX-101 falls into a mid-range price category for telescope mounts.
Pros:
· Lightweight
· Power supply included
· Dual Equatorial or Alt-Azimuth configurations
· Large weight capacity
· Portability
· Low backlash
· Compatible with multiple control protocols
· Attractive sturdy construction
Cons:
· Some users have said polar alignment can be tricky
· No hand controller
